Drivers
LF: 1 x 8" Bass-midrange driver
HF: 1 x 1" Compression driver

Frequency range
65 Hz - 23 kHz (- 10 dB)
90 Hz - 22 kHz (+/- 3 dB)

Coverage range (h x v)
asymmetrical 100° to 50° x 55

Impedance
8 Ω

Powerhandling (AES / program / peak)
200 W / 400 W / 800 W

Sensitivity 1 W/1 m
93 dB SPL

Sound pressure at (AES / program / peak)
116 dB SPL / 119 dB SPL / 122 dB SPL

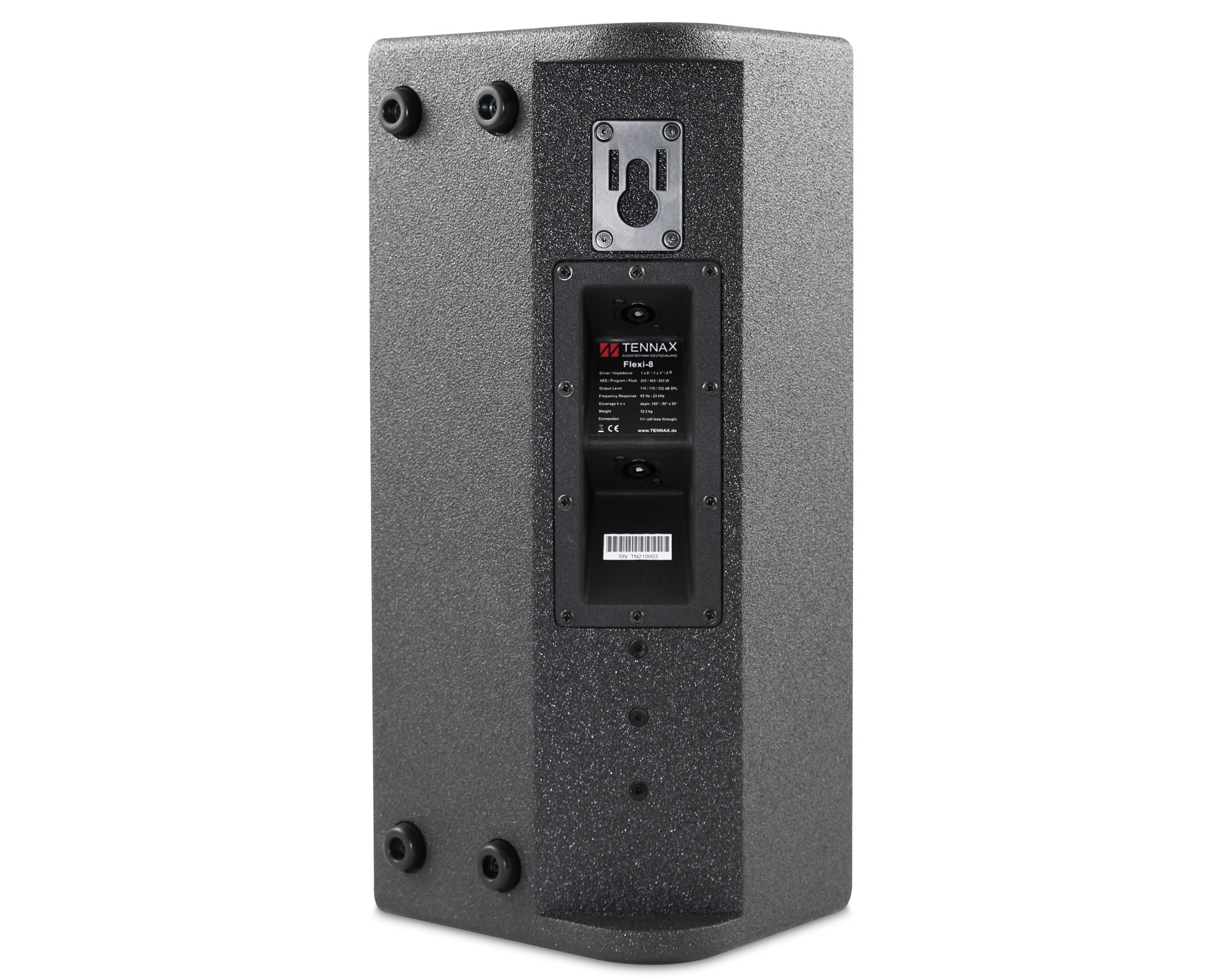

Connection
2 x Neutrik NL4 IN/OUT 1+/- (4-pole looped-through)

Finish
Polyurea coating in RAL 9005

Dimensions / Weight
474 (H) × 258 (W) × 282,2 mm (D) / 12,3 kg
